Can a junction box contain more than one circuit connection?

Yes, a junction box can contain connections for more than one circuit when the enclosure and wiring arrangement support the installation. Clear conductor identification helps prevent service errors.

Where should a junction box cover be located?

A junction box cover should remain reachable at the finished surface or through an accessible opening. Concealing the cover behind permanent construction prevents inspection and servicing.

Does every junction box contain a circuit breaker?

No, a junction box contains wire connections, while a circuit breaker belongs in a load center or another approved overcurrent protection device. The two enclosures serve different purposes.

Glossary

What Is a Junction Box?

A junction box is an enclosed electrical container that protects wire connections where circuit conductors meet, split, or change direction. The box provides a controlled space for splices and helps keep connections accessible for inspection and future servicing. Junction boxes may be metal or nonmetallic and can be installed in walls, ceilings, attics, or exposed locations.

Quick Facts About Junction Box

Key Takeaways About Junction Box

Its enclosure separates wire connections from surrounding building materials.
The box keeps splices accessible for inspection and repair.
A junction box is not the same as a load center.

How Junction Box Works

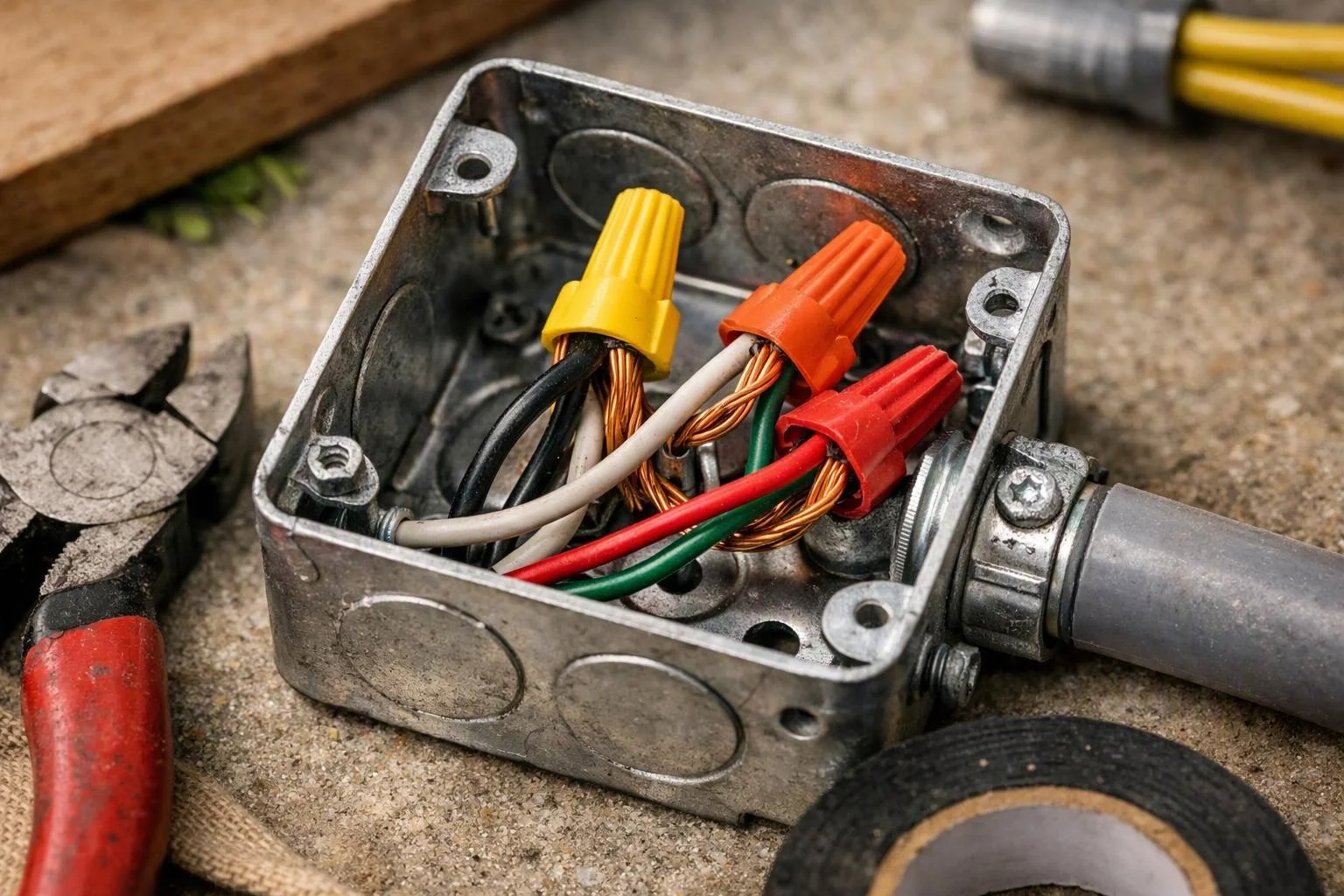

An open metal electrical box holds color-coded wires, with pliers and a cable nearby on a work surface

A junction box contains the point where electrical conductors connect or branch into separate runs. Wire connectors secure the conductors inside the enclosure, while the box keeps the connection separated from insulation, framing, and other materials. Covers close the opening and allow the connection to remain accessible.

Related glossary terms: Wire Connector, Conduit, Electrical Load.

Electricians select a box that fits the wiring method, conductor arrangement, and installation location. A box may connect a switch leg, lighting circuit, receptacle branch, or feeder section. Wire connectors join matching conductors, while conduit may protect wires as they enter or leave the enclosure. The box itself does not control electrical current like a circuit breaker.

Two men discuss a metal junction box at a table, with an instructional poster on the wall behind them

From the Service Electric team

When we install or inspect a junction box, we check the enclosure, cover, conductor connections, and cable entry points. Our team also traces each wire so the circuit layout remains clear for later troubleshooting. We look for secure connections and signs of heat, moisture, or physical damage.

Junction Box in Practice: A Real-World Example

During an electrical wiring installation, a junction box can connect the cable from a wall switch to the cable supplying a ceiling light. The cover keeps the splice enclosed while leaving the connection accessible for future service.
