What Is a Grounding Electrode?
A grounding electrode is a conductive object that connects an electrical system to the earth. The electrode may be installed in soil or incorporated into a building’s foundation. Its connection provides a path for unwanted electrical energy and supports the grounding system during faults, surges, and other abnormal conditions.
Quick Facts About Grounding Electrode
Category
Electrical grounding component
Used for
Connecting a system to earth
Common confusion
Not the same as a neutral wire
Also called
Ground Rod, Ground electrode
Often discussed with
Electrical Safety Inspection
Key Takeaways About Grounding Electrode
- The electrode connects electrical equipment and systems to earth.
- A grounding electrode is part of a larger grounding system.
- A grounding electrode is not the same as a neutral conductor.
How Grounding Electrode Works
A grounding electrode transfers electrical energy between an electrical system and the earth. The electrode connects to the grounding electrode conductor, which links the electrode with the service equipment or another approved point in the grounding system. Soil conditions and the electrode’s contact with earth affect how the connection performs.
Related glossary terms: Bonding, Continuity Test, Ground Fault.
Common electrode types include metal underground water pipe, concrete-encased reinforcing steel, and purpose-built grounding electrodes. The electrode does not normally carry operating current. During a fault or surge, the grounding system helps direct unwanted energy along an intentional path, supporting protective devices and reducing the chance that exposed metal remains energized.
From the Service Electric team
When we perform an Electrical Safety Inspection, we examine the grounding electrode connection and its visible conductors for damage, looseness, corrosion, or improper routing. We also compare the electrode connection with the service equipment and bonding points so the grounding system works as a connected path.
Grounding Electrode in Practice: A Real-World Example

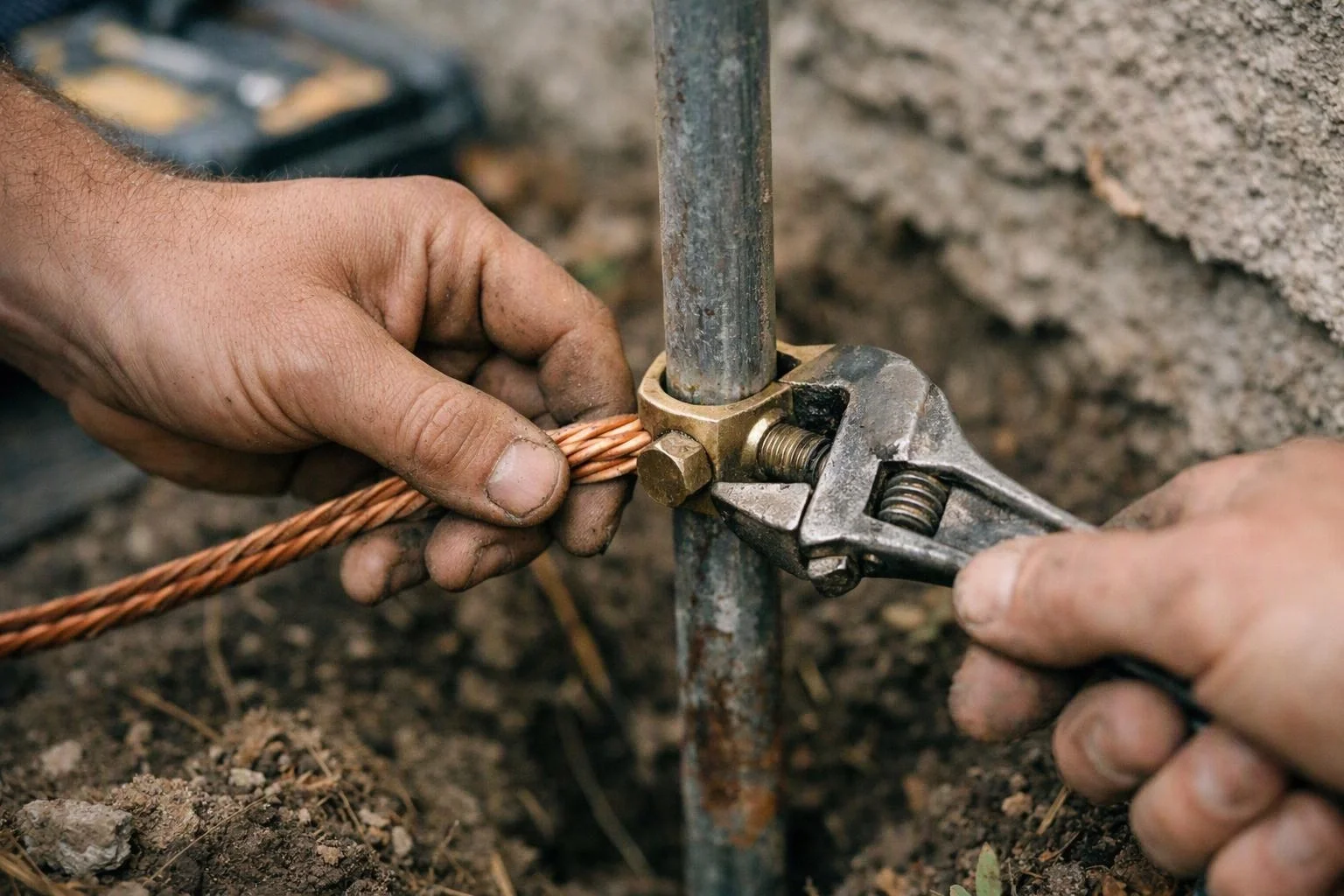

During an Electrical Safety Inspection, we may find a grounding electrode conductor attached to an accessible grounding electrode near the service equipment. We check that the connection is secure and that visible sections are protected from physical damage.
