What Is a Busbar?
A busbar is a conductive metal strip or bar that distributes electrical power to multiple circuits inside equipment such as a panelboard. The busbar connects incoming power with circuit breaker positions, allowing each breaker to receive power from a common supply point. Insulating supports keep the energized metal separated from the enclosure.
Quick Facts About Busbar
Category
Electrical panel component
Used for
Distributing power to branch circuits
Common confusion
A busbar is not a breaker
Also called
Bus Bar
Often discussed with
Electrical Panel Upgrade
Key Takeaways About Busbar
- A busbar is a solid conductor, not a circuit breaker.
- Its layout determines where breakers connect inside a panel.
- A neutral bar is a separate panel component with a different function.
How Busbar Works
A busbar carries electrical power through a panel and provides connection points for circuit breakers. Incoming conductors connect to the panel assembly, while breakers attach to the busbar through designed contact points. Each connected breaker then sends power to its assigned branch circuit.
Related glossary terms: Load Center, Electrical Load, Neutral Wire.
Panel manufacturers shape and insulate busbars to fit a specific enclosure and breaker system. The busbar's material, arrangement, and connection surfaces affect how power moves through the panel. A load center may contain separate bars for ungrounded conductors, neutral conductors, or grounding connections, depending on its design. During a panel upgrade, the existing busbar must match the replacement breakers and the panel's intended electrical layout.
From the Service Electric team

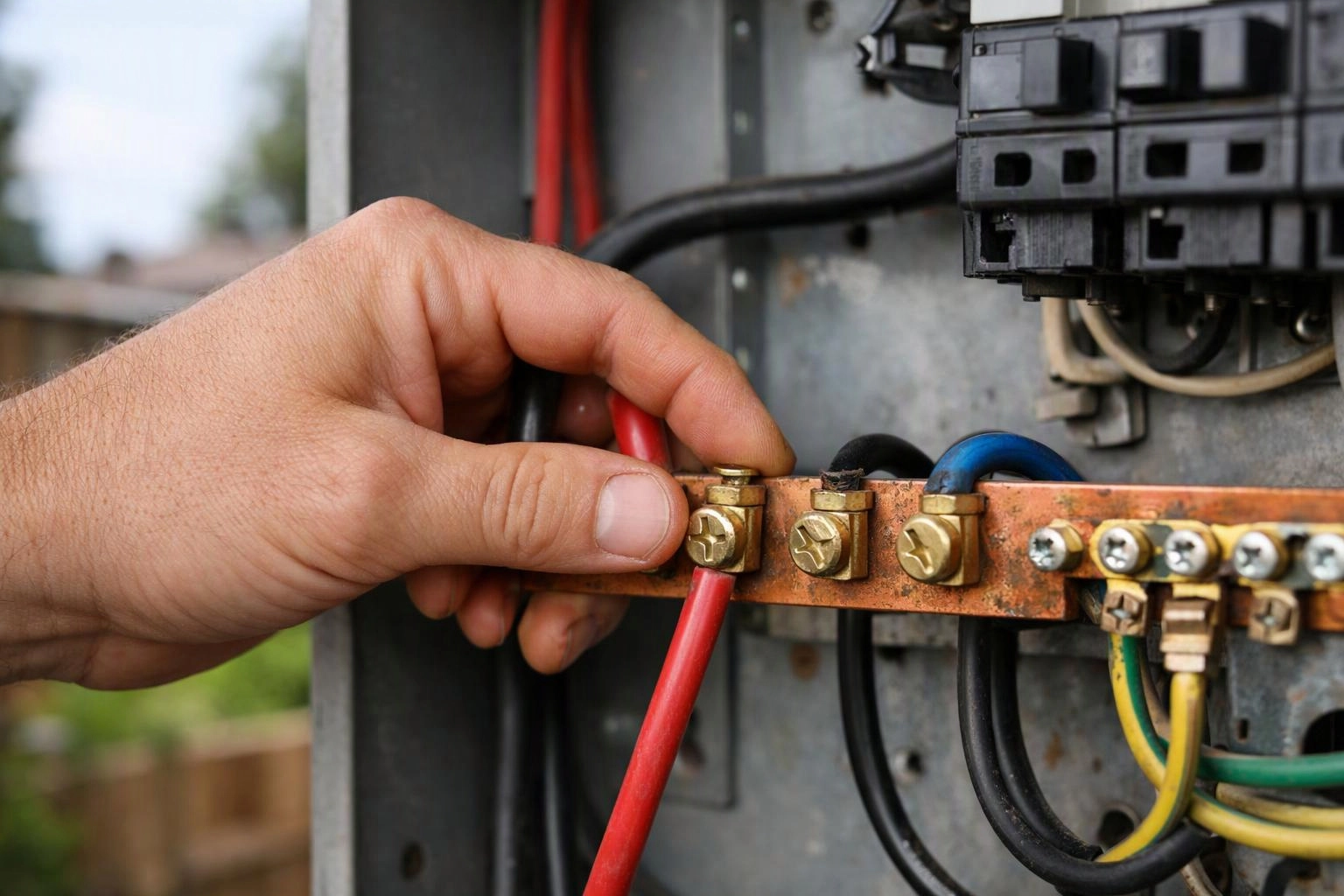

When we inspect a busbar, we check its connection points, alignment, and signs of heat damage or corrosion. We also verify that the breaker arrangement matches the panel design. During an Electrical Panel Upgrade, our team reviews the busbar as part of the complete panel assembly.
Busbar in Practice: A Real-World Example
During an Electrical Panel Upgrade, a replacement panel uses a busbar designed for its compatible breakers. Each branch circuit breaker connects to an assigned position, allowing the panel to distribute power through the home's existing circuits.
