What Is an Arc-Fault Circuit Interrupter?
An arc-fault circuit interrupter is a protective device that monitors electrical current for patterns linked to unintended arcing. The device opens the circuit when it detects a dangerous arc signature. This action can reduce the risk of wiring damage and electrical fires caused by loose connections, damaged insulation, or worn conductors.
Quick Facts About Arc-Fault Circuit Interrupter
Category
Electrical safety device
Used for
Detecting unintended electrical arcs
Common confusion
Often confused with a ground-fault interrupter
Also called
AFCI, Arc-Fault Circuit Breaker
Often discussed with
Electrical Safety Inspection
Key Takeaways About Arc-Fault Circuit Interrupter
- An AFCI responds to electrical arcing patterns.
- The device protects wiring and connected equipment.
- An AFCI is not the same as a GFCI.
How Arc-Fault Circuit Interrupter Works
An arc-fault circuit interrupter samples the electrical current flowing through a circuit and looks for irregular patterns associated with arcing. Arcing can occur when electricity jumps across a damaged connection or travels through deteriorated insulation. When the device identifies a hazardous pattern, the AFCI opens the circuit and stops current flow.
Related glossary terms: Ground Fault, Load Center, Wire Gauge.

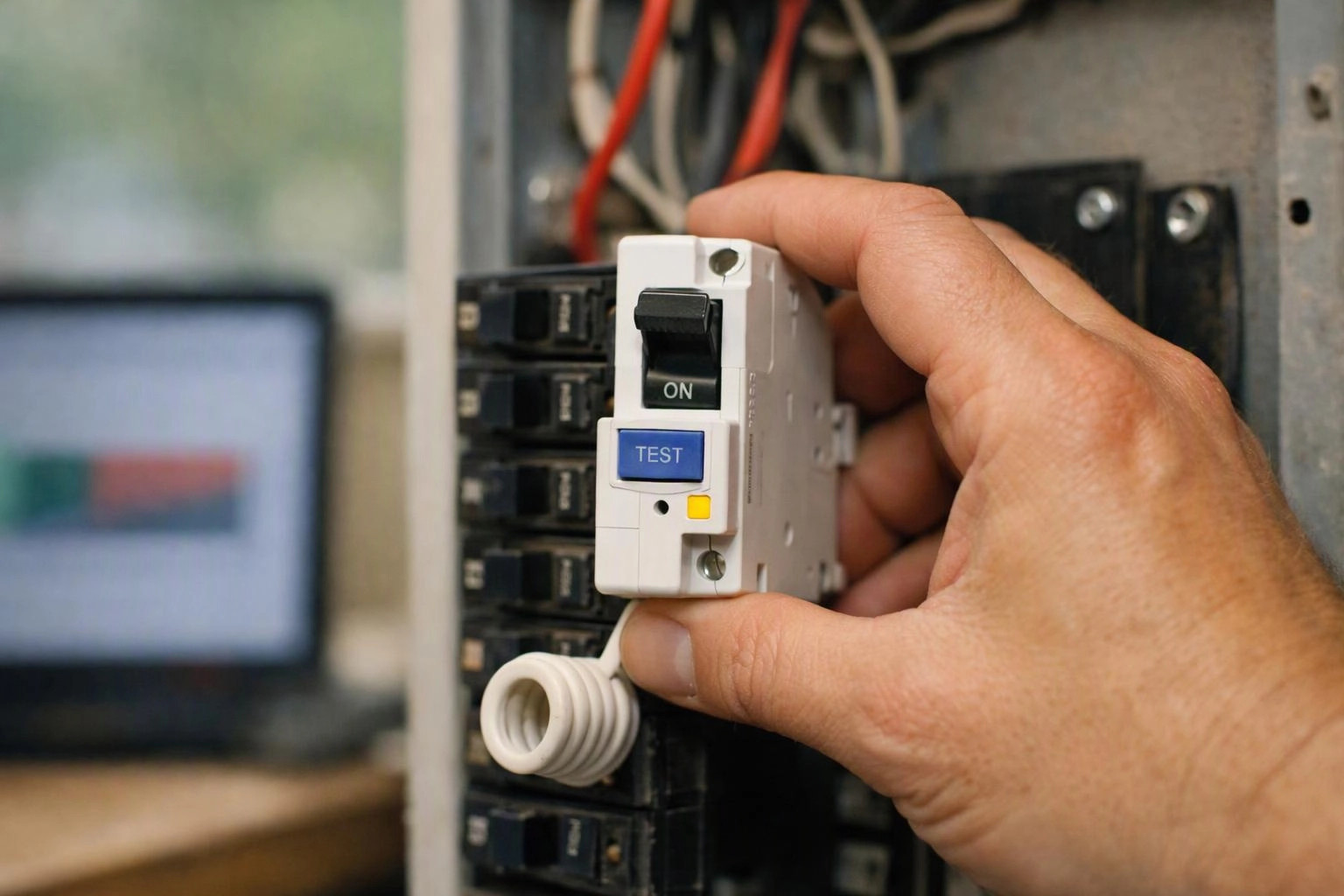

An AFCI may be installed as a circuit breaker or as a receptacle, depending on the electrical system and the circuit layout. An arc-fault circuit breaker monitors the full branch circuit from the panel. A ground-fault circuit interrupter focuses on current leaving its intended path, so the two devices address different electrical hazards. Testing also checks whether the device responds and resets correctly.
From the Service Electric team
When we inspect an AFCI, we check its test response, reset operation, circuit connections, and compatibility with the panel. During an Electrical Safety Inspection, we also look for damaged wiring, loose terminations, and nuisance trips that may point to a circuit or equipment problem.
Arc-Fault Circuit Interrupter in Practice: A Real-World Example
During an Electrical Safety Inspection in a Victoria, Texas home, an AFCI may trip when a damaged cord or loose connection creates an arcing pattern. We trace the affected circuit, identify the source, and verify proper operation after the issue is corrected.
